The boxplot is a visual representation of a dataset’s distribution, showing the median, quartiles, and outliers. It is useful for comparing distributions between groups and identifying outliers within a single group.

  • You know how to install and load packages in R.
  • You know how to import data into R.
  • You recognise data frames and vectors.

Your data should be structured in a way that makes it easy to plot. The ideal structure is long, i.e. one where each column represents a variable and each row an observation (Figure 1). You can either reshape your data in R or move cells manually in a spreadsheet program to achieve the desired structure. For boxplots comparing more than one group of data, a categorical variable representing the group should be present in the data.

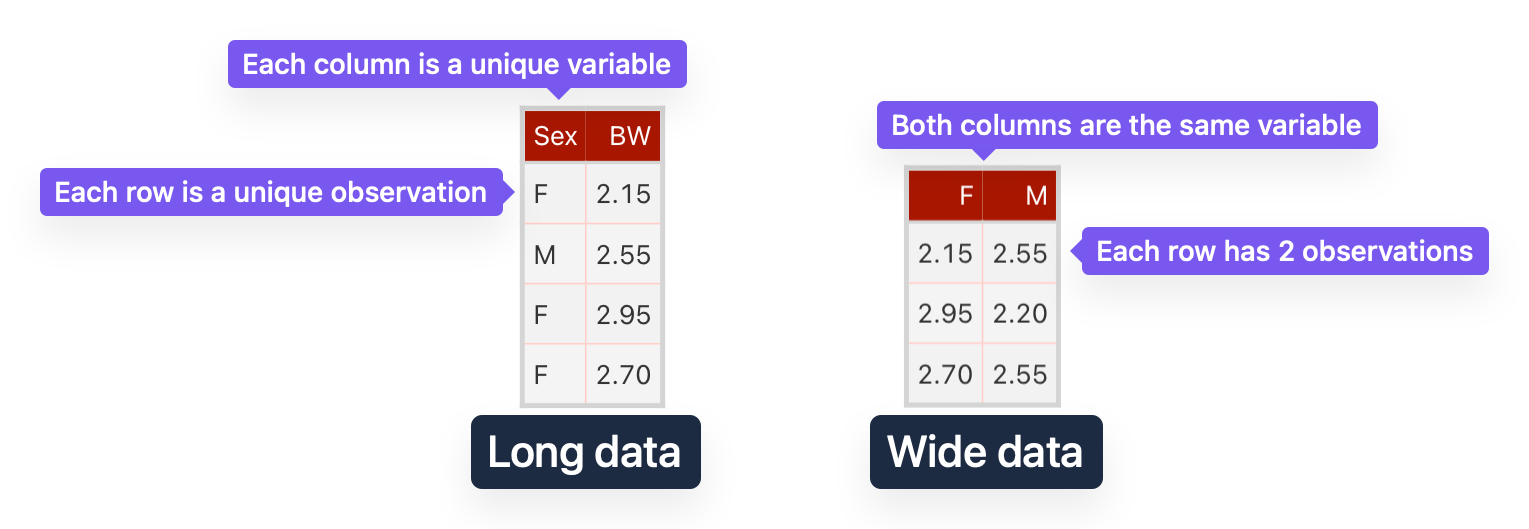

Figure 1: Long data (left) where each column is a different variable – e.g. Sex is categorical and BW is the measured, continuous response – is preferred over wide data (right), as it makes it easier to manipulate data when plotting.

1 Data

For this cheatsheet we will use part of the possums dataset used in BIOL2022 labs.

2 Import data

library(readxl) # load the readxl package
possums <- read_excel("possum_bw.xlsx") # read file, store as "possums" object

3 Plot

Below are multiple versions of a boxplot comparing the body weight, BW, of possums between two groups defined by the Sex variable. Use the code snippets and their different implementations to understand how to customise your boxplot.

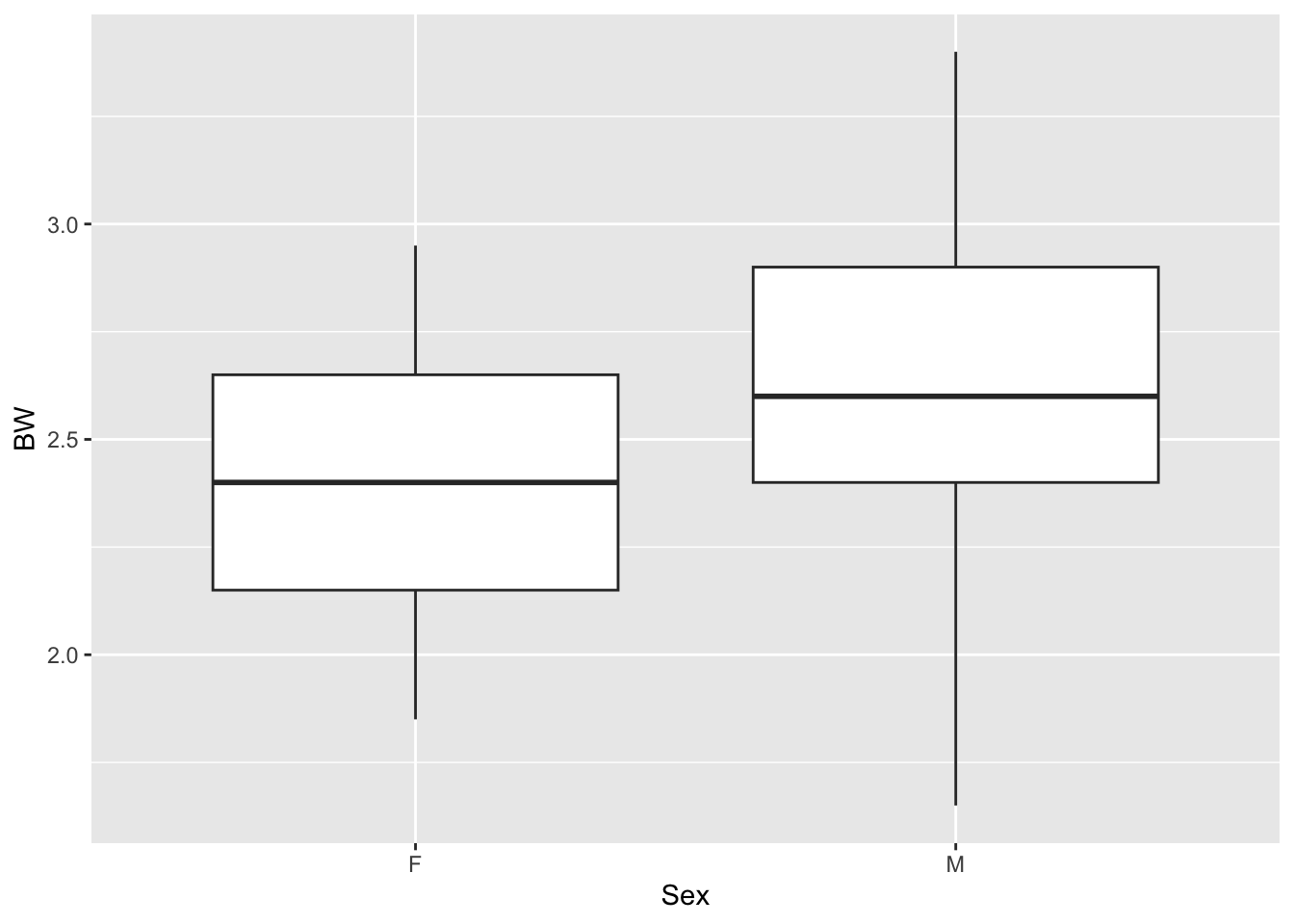

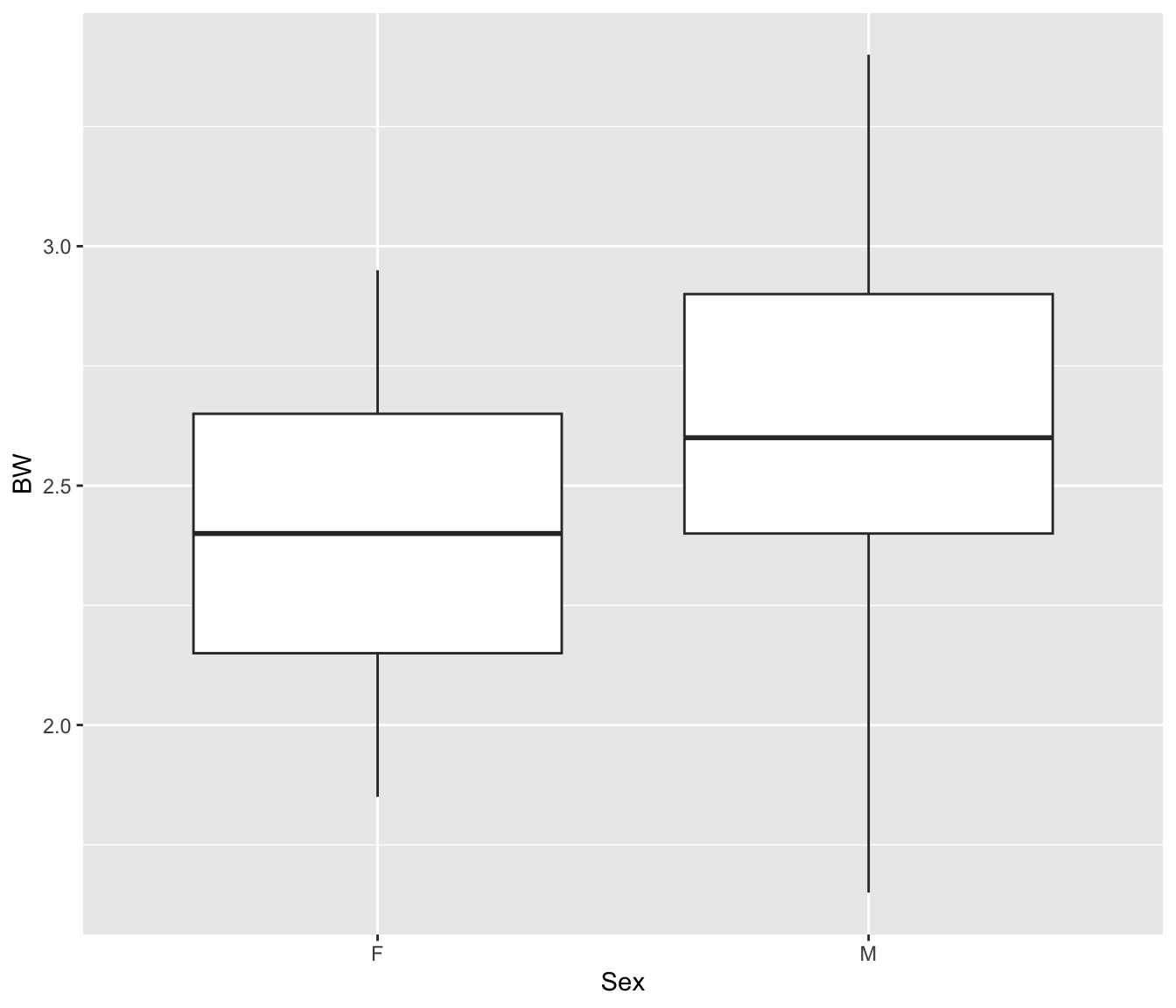

1library(ggplot2)
2ggplot(possums, aes(x = Sex, y = BW)) +
3  geom_boxplot()
1
The library() function loads a package. Here, we load the ggplot2 package to enable the functions required to create the plot.
2
The ggplot() function creates a plot canvas. The aes() function specifies the aesthetic mappings, i.e. which variables are mapped to the x and y axes.
3
Once the canvas is defined, the data can be added automatically using geom_*() functions. Here, geom_boxplot() adds the boxplot to the canvas, structured according to the aesthetic mappings.

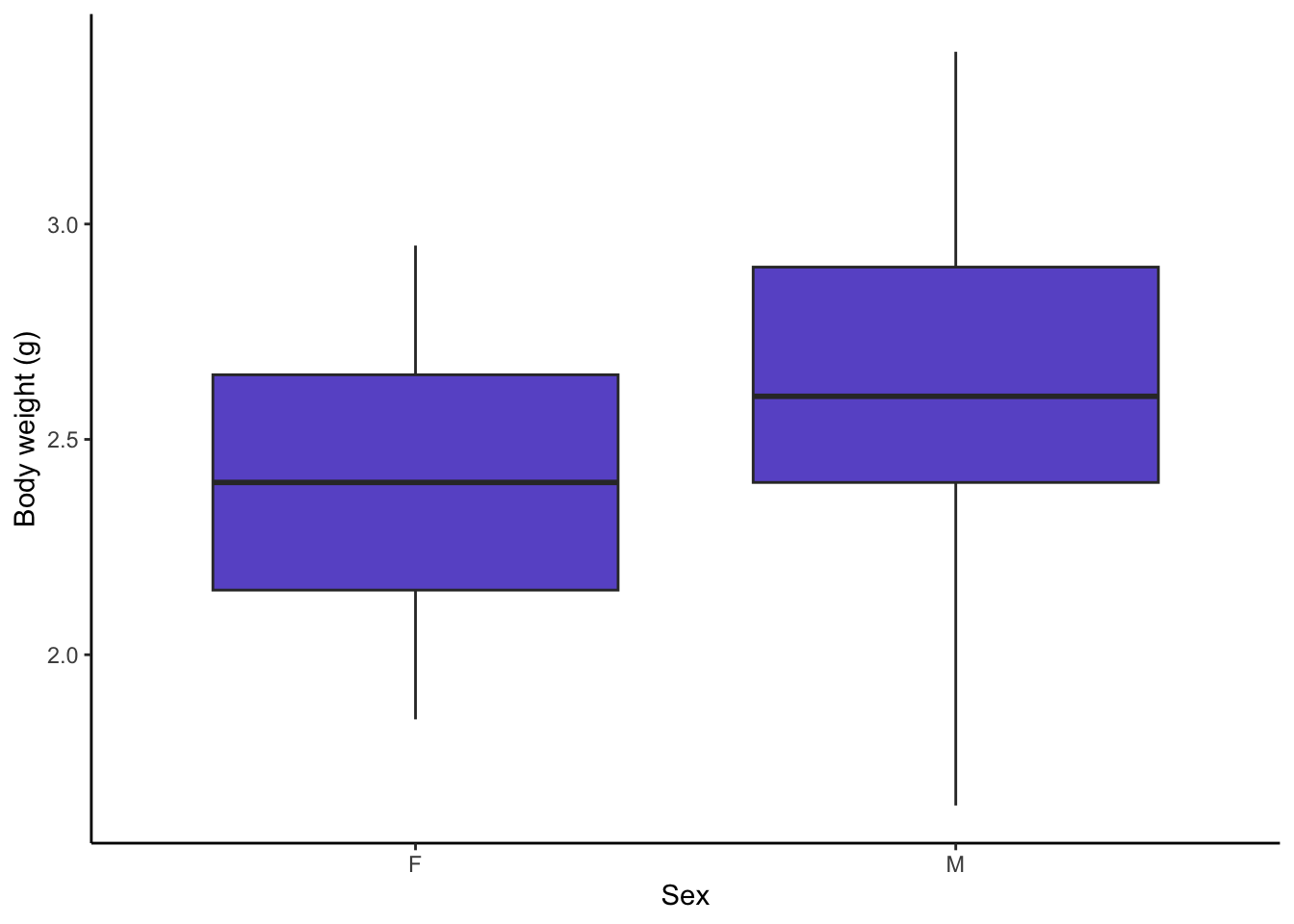

library(ggplot2)
ggplot(possums, aes(x = Sex, y = BW)) +
1  geom_boxplot(fill = "slateblue") +
2  xlab("Sex") +
  ylab("Body weight (g)") +
3  theme_classic()
1
Adding a fill argument to the geom_boxplot() function changes the colour of the boxplot.
2
xlab() and ylab() add labels to the x and y axes, respectively.
3
An optional step, theme_classic() changes the plot’s appearance without needing to specify complex customisations.

library(ggplot2)

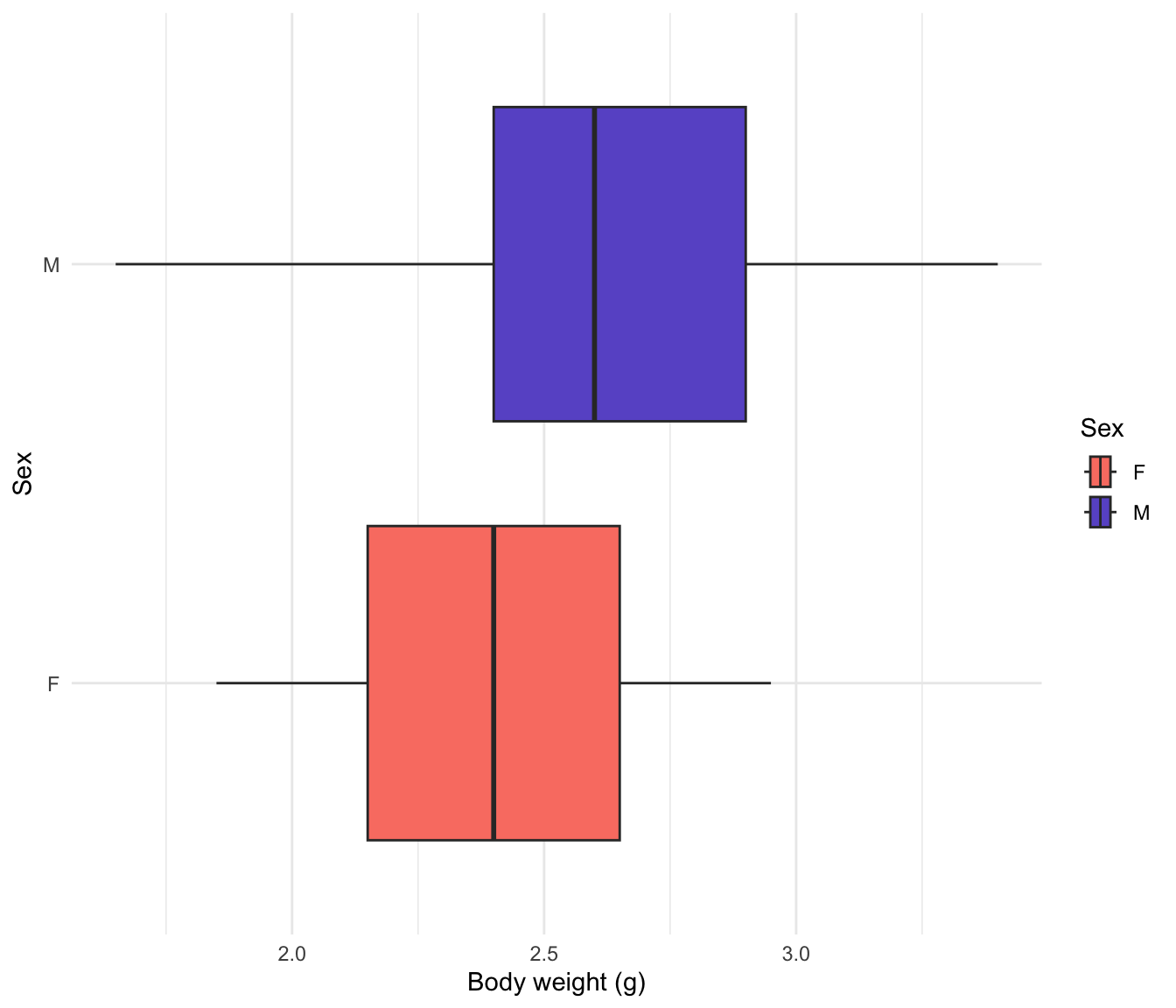

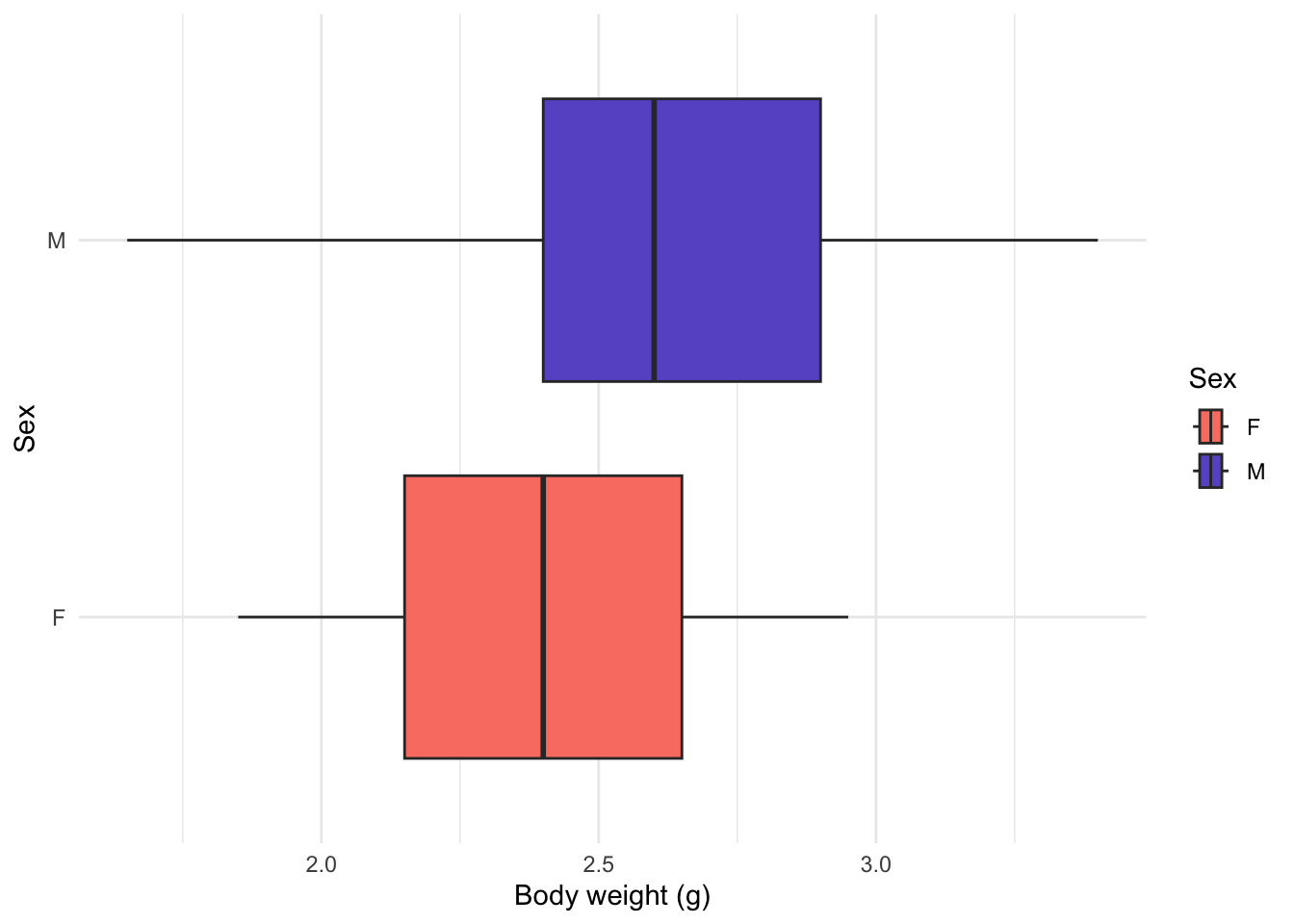

1ggplot(possums, aes(x = BW, y = Sex, fill = Sex)) +
  geom_boxplot() +
  xlab("Body weight (g)") +
  ylab("Sex") +
  theme_minimal() +
2  scale_fill_manual(values = c("salmon", "slateblue"))
1
The Sex variable is mapped to the y-axis and the BW variable to the x-axis. The fill aesthetic is used to colour the boxplots by the Sex variable.
2
The scale_fill_manual() function allows you to manually set the colours of the boxplots defined by the fill aesthetic in the aes() function above. There must be one colour for each level of the Sex variable.

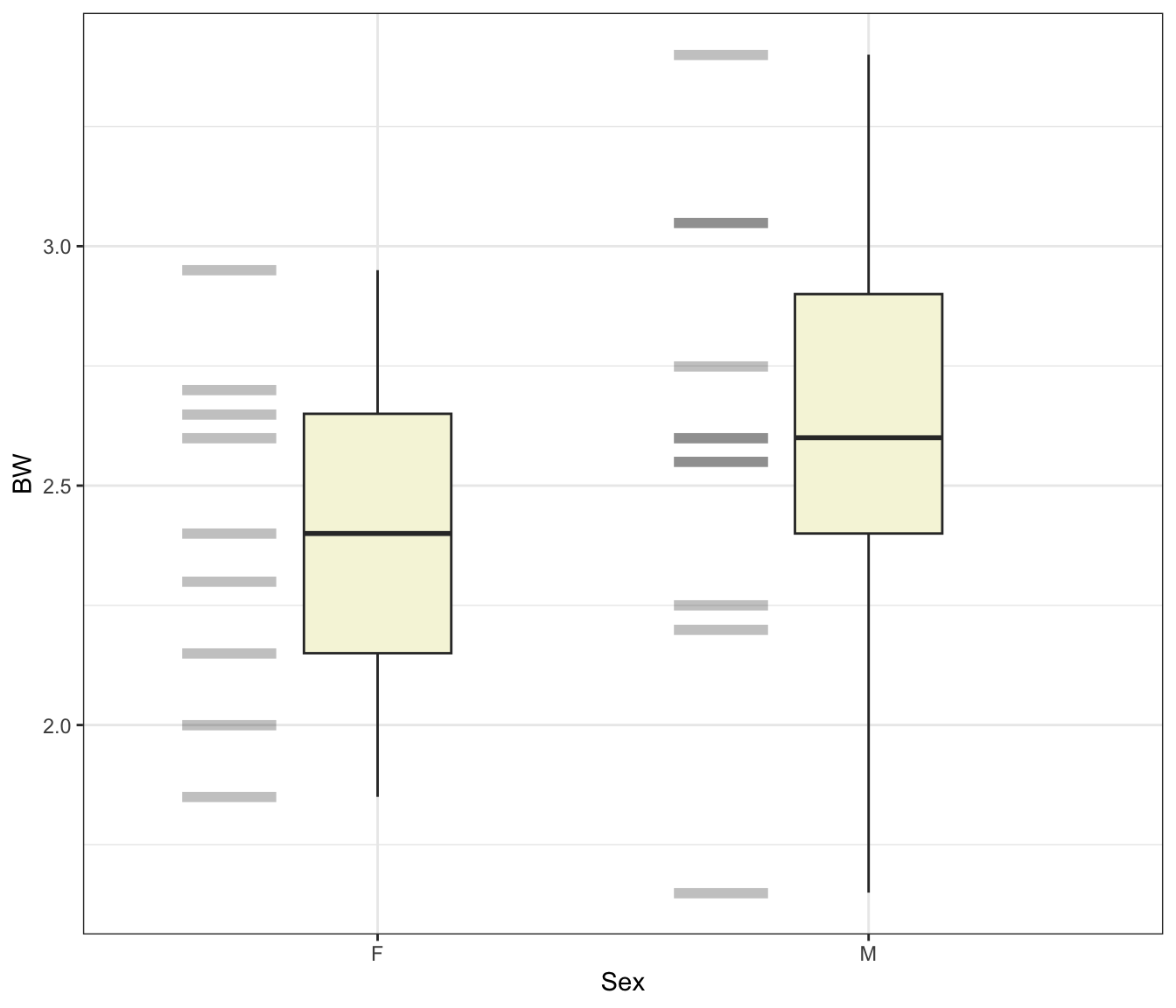

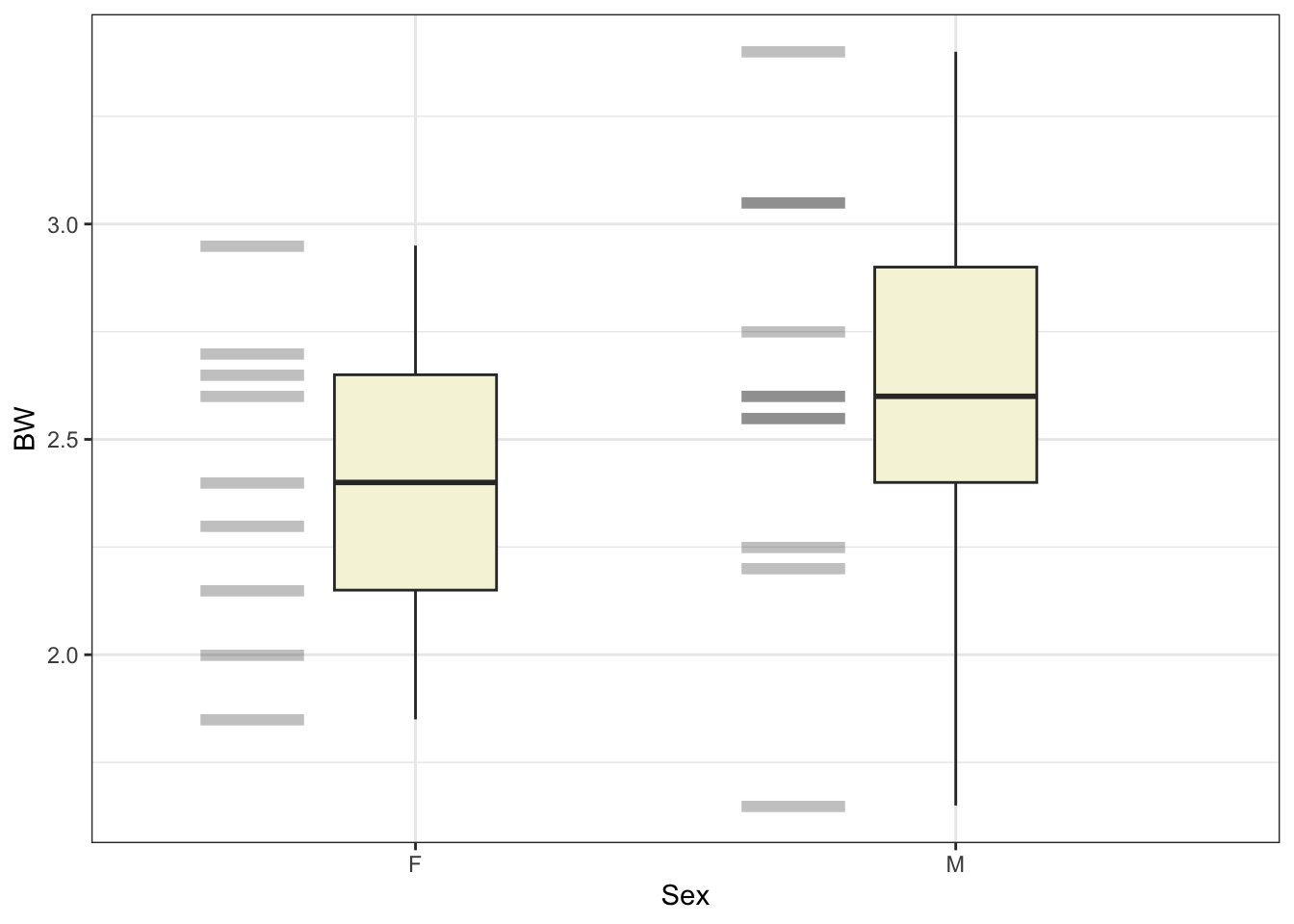

library(ggplot2)
ggplot(possums) +
1  aes(x = Sex, y = BW) +
2  geom_boxplot(width = .3, fill = "beige") +
3  geom_point(
4    position = position_nudge(x = -.3),
5    shape = 95, size = 24, alpha = .25
  ) +
  theme_bw()
1
The aes() function is placed outside the ggplot() function, allowing the aesthetic mappings to be used across multiple geom_*() functions.
2
geom_boxplot() can be customised further using the width argument to change the width of the boxplots.
3
geom_point() adds points to the plot.
4
The position_nudge() function moves the points to the left of the boxplots by -0.3 units.
5
The shape, size, and alpha arguments customise the appearance of the points, resulting in a different visual representation of the data “points”.

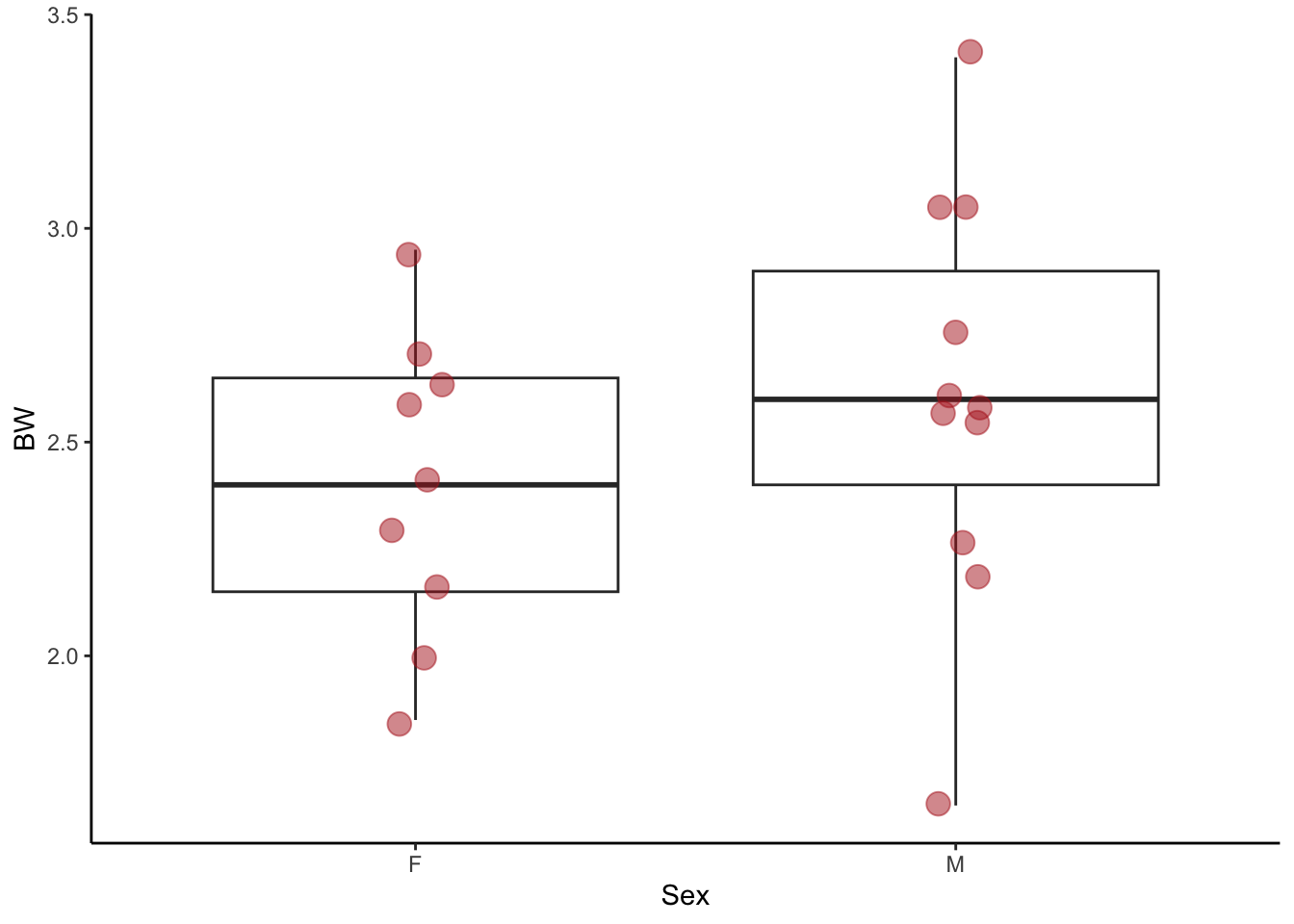

library(ggplot2)
plot1 <-
  ggplot(possums) +
1  aes(x = Sex, y = BW)

2plot1 +
  geom_boxplot() +
  geom_point(
3    position = position_jitter(width = .05, seed = 0),
    size = 4, alpha = .5,
    colour = "firebrick"
  ) +
  theme_classic()
1
It is possible to save current work on a plot for later use by assigning it to an object, e.g. plot1.
2
To continue working on the plot, use the + operator on the saved object and continue adding layers.
3
The position_jitter() function adds a small amount of random noise to the points, preventing them from overlapping. The seed argument ensures the noise is consistent across multiple plots.
